1、描述(SCOPE):
格书适应于12V6A电源适配器。
The document is to specify the functional requirements of a 72W switching power supply.
2、输入特性(INPUT CHARACTERISTICS):
2.1输入电压(Input Voltage):
额定电压(Nominal Voltage):100-240Vac
调整范围(Variation Range):90-264Vac
2.2输入频率(Input Frequency):
额定频率(Nominal Frequency):50/60Hz
调整频率(Variation Frequency):47-63Hz
2.3输入电流(Input Current):
当输入交流电压为额定值的下限时,输出电压负载满载,最大输入交流电流1.2A。1Arms max At any input voltage and rated, DC output rated load.
2.4浪涌电流(Inrush Current):
当输出为额定负载,环境温度为25℃,输入240Vac冷态起动电源时的最大浪涌电流小于30A。
30Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.
2.5 AC漏电流(Ac Leakage Current):
当输入电压240Vac时,最大漏电流为0.25mA。
0. 25mA Max At 240Vac input.
3、输出特性(OUTPUT CHARACTERISTICS):
3.1输出功率(Power Output);
电压 最小负载 最大负载 峰值电流 输出功率
Voltage Min. Load Max. Load Peak Output Power
+12Vdc 0A 6A 7.8A 72W
3.2负载特性/调整率(Combined Load/Line Regulation):
电压 最小空载电压 最大空载电压 线性调整 负载调整
Voltage Min. Voltage Max. Voltage Line Regulation Load Regulation
+12Vdc 12.00V 12.6V ±5% ±5%
测试条件:任何负载正常工作下,使用示波器带宽为20MHz连接到充电器的输出端,同时输出端并 连一个47uF的电解电容和一个 0.1uF 的瓷片电容。
3.3波纹和噪音(Ripple And Noise):
The ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
电压 最大波纹最大噪音
Voltage Ripple And Noise(Max.)
+12Vdc 80.5mVp-p
3.4启动延迟时间(Turn On Delay Time):
当输入115Vac和输出最大负载时,最大启动时间为2S。
2 second Max. At 115Vac input and output Max. Load.
3.5上升时间(Rise Time):
当输入115Vac和输出最大负载时最大时间为40mS。
40mS Max. At 115Vac input and output Max. Load.
3.6保持时间(Hold Up Time):
当输入115V和输出最大负载时,最小保持时间为5mS。
5mS Min. At 115Vac input and output Max. Load.
3.7效率(Efficiency):
当输入100Vac和输出最大负载时,最小83%。
83%Min.At 100Vac input and output Max. Load.
当输入240Vac和输出最大负载时,最小85%。
85%Min.At 240Vac input and output Max. Load.
3.8过冲(Overshoot):
在电源开启或关闭的时候,最大15%。
15%Max.When power supply at turn on or turn off.
3.9 空载损耗不大于0.5W.
4、保护功能(PROTECTION REQUIREMENT):
4.1短路电路保护:
Short Circuit Protection:
该电源供给器在短路解除时,能正常工作恢复。
The power supply will be auto recovered when short circuit faults remove.
4.2过流保护(Over current Protection):过流故障排除后,电源将自动恢复正常工作。
The power supply will be auto recovered when over current faults remove.
4.3过压保护(Over Voltage Protection)
当输出电压超过额定电压时,电源将保护,故障排除后不能恢复正常工作。
The power supply will not be auto recovered when faults remove.
5、环境要求(ENVIRONMENTAL REQUIREMET):
5.1工作温度(Operating Temperature):
0℃~ 70℃,满载,正常工作(Full load Normal operation)。
0℃to70℃,Full load Normal operation.
5.2储存温度(Storage Temperature):-20℃to85℃,带外壳(With package).
5.3工作湿度(Relative Humidity):
5%(0℃)~90%(40℃),72小时,满载,正常工作
5%(0℃)~90%(40℃)RH,72Hrs,Full load Normal operating.
5.4振动(Vibration):
1、测试标准:国际电工电子委员会 Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm 加速度(9~200Hz,Acceleration 5m/s2)
2、运输 (Transportation): IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz,加速度Acceleration=5m/S2
200~500HZ,加速度Acceleration=15m/S2
3、轴向振动(Axes,10 cycles per axis).
在测试过程中不能出现永久性的损坏。
No permanent damage may occur during testing.
The product has to restors its original situation after power off/on.)
在电源开启和关闭后,样机能够恢复到最初条件。
5.5跌落试验(Dropping)(Packed):
一个角,三个棱, 六个面。
1 corner,3 edges, and 6 surfaces
高度76cm Height:76cm
6、安全及EMC要求(SAFETY AND EMC REQUIREMENT):
6.1安全:符合UL CE GS KC SAA ROHS标准
6.2高压(DIELECTRIC STRENGTH)(H-Pot):
()Primary to secondary),3000Vac/5mA/5s.
7、结构参数(MECHANICAL REQUIREMENT):
7.1外壳(Enclosure):

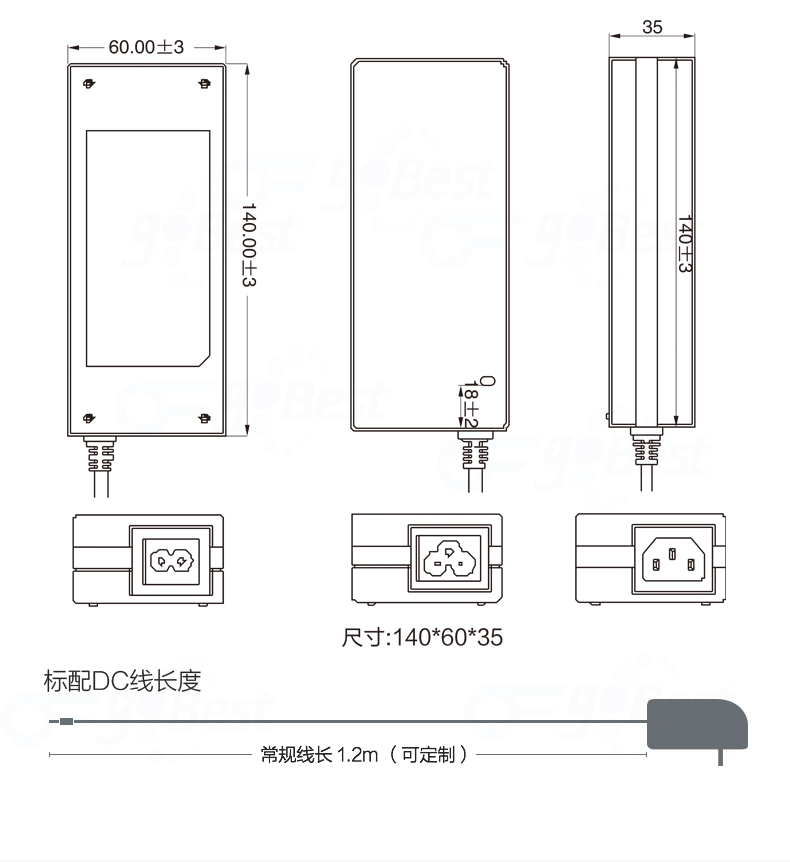

外壳尺寸:L140*W60*H34mm
The power supply size L:140*W:60*H:34mm
7.2输入座 (Input Connector): 8字型输入座
7.3;输出线
DC 线: AWM 2464 20AWG*2C,VW-1,80℃,FTI,300V,线上有字,总1.2米,带环加5.5*2.1*10mm 公头 音叉
DC cable: AWM 2464 20AWG*2C,VW-1,80℃,FTI,300V,with word on the cord, Length:1.2M, with the conector:5.5*2.1*10mm
